DSWG-20 Reinforced rebar stirrup bender CNC machine

Rebar Stirrup Bender CNC Machine is a highly efficient and precise piece of equipment designed for the automated bending of steel reinforcement bars (rebar) used in the construction industry.

Rebar Bending Machine, reinforce steel bar bender, Reinforced Rebar Stirrups Bending Machine For Sale, Stainless Steel Stirrup Bender Machinery

DSWG-20 Reinforced rebar stirrup bender CNC machine

Rebar Stirrup Bender CNC Machine is a highly efficient and precise piece of equipment designed for the automated bending of steel reinforcement bars (rebar) used in the construction industry.

Rebar Bending Machine, reinforce steel bar bender, Reinforced Rebar Stirrups Bending Machine For Sale, Stainless Steel Stirrup Bender Machinery

DSWG-20 Reinforced rebar stirrup bender CNC machine

Rebar Stirrup Bender CNC Machine is a highly efficient and precise piece of equipment designed for the automated bending of steel reinforcement bars (rebar) used in the construction industry.

Rebar Bending Machine, reinforce steel bar bender, Reinforced Rebar Stirrups Bending Machine For Sale, Stainless Steel Stirrup Bender Machinery

Product Categories

Loop tie wire machine 4

Bale tie wire machine 6

Straight cut wire tie machine 1

Steel nail making machine 10

Steel wire drawing machine 3

Nail knife grinder machine 1

Steel nail polishing machine 1

Steel wire pointing machine 1

Wire butt welding machine 1

Straightening and cutting machine 7

Rebar bending machine 3

Scrap rebar straightening machine 1

Rebar cutting machine 1

Welding wire tie machine 1

Double loop wire ties 7

Baling wire ties 0

Rebar Stirrup Bender CNC Machine is a highly efficient and precise piece of equipment designed for the automated bending of steel reinforcement bars (rebar) used in the construction industry. The machine is capable of creating complex stirrups, which are critical components for reinforcing concrete structures, such as beams, columns, and slabs. These stirrups are often bent into specific shapes to provide structural integrity and stability.

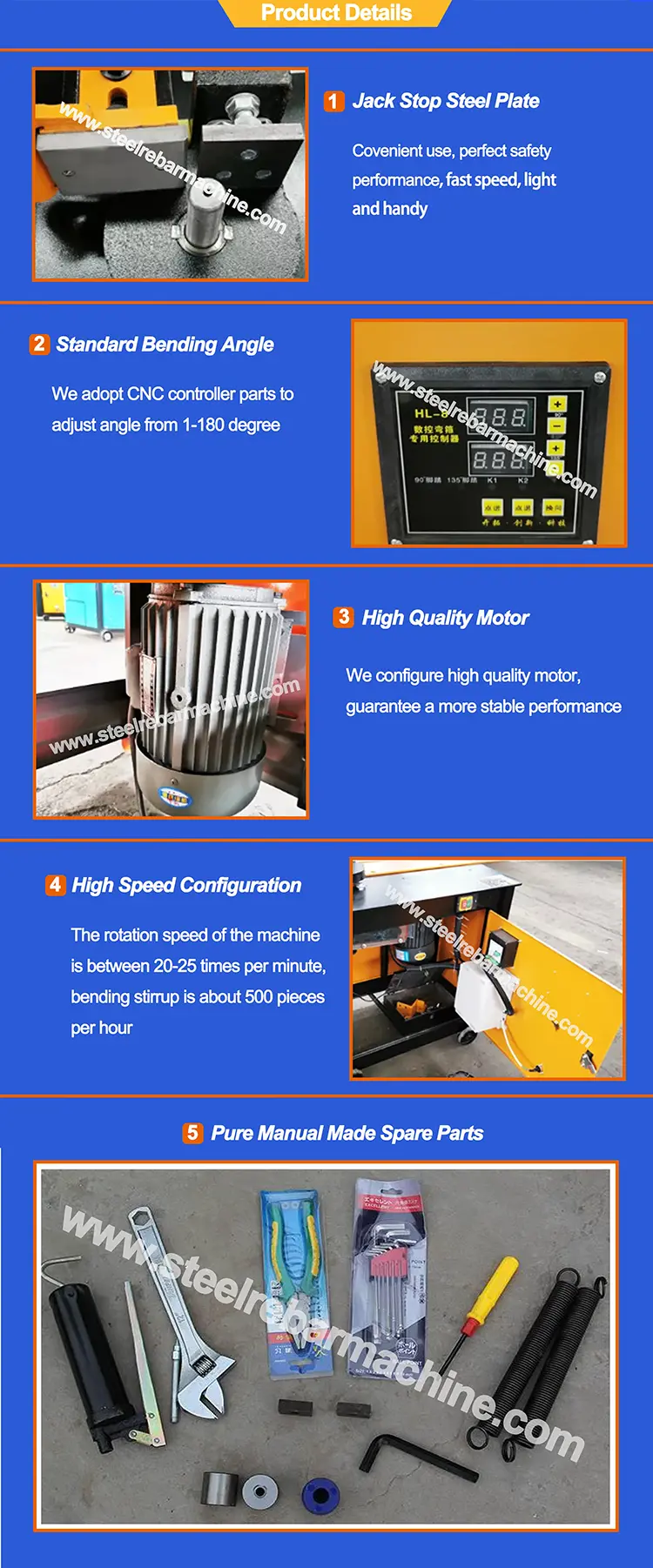

The main features of rebar stirrup bender CNC machine

Convenient use: perfect safety performance, standard angle, fast speed, light and handy.
Easy Operation: one man can operate it once switch on the power.
Convenient of range adjustment: Just need to shift induced magnet; Just need to press the button on operation panel.
We adopt two foot pedals: 90°and 135°, angle adjustment freely.
Fast Speed: rotate speed is 30 times/min.

The technical parameters of rebar stirrup bender CNC machine

Model	DSWG-20	DSWG-25	DSWG-28	DSWG-32
Round bar	6-20 mm	6-25 mm	6-28 mm	6-32 mm
Class bar	6-18 mm	6-22 mm	6-25 mm	6-28 mm
Speed	28 pcs/min	28 pcs/min	28 pcs/min	25 pcs/min
Power	2.2 kw	3.0 kw	3.0 kw	3.0 kw
Voltage	3 phase 220v/380v/415v or customized
Dimension	855530830 mm	855570900 mm	900670900 mm	750750870 mm
Weight	100 kg	140 kg	200 kg	220 kg
Operation	Travel switch control or digital control panel

Company profile:

Dingsheng machine manufacture company is established in 1999, and we are located in Hengshui city, China. Our company is always engaged in developing and designing metal wire forming and processing machine. We promise that we can supply high quality machine and great after-sale service.

Our main products are Loop tie wire machine, Bale tie wire machine, Straight cut wire tie machine, Welding wire tie machine, Steel nail making machine, High speed steel nail making machine, Steel wire drawing machine, Steel nail polishing machine, Nail knife grinder machine, Steel wire pointing machine, Wire butt welding machine, Straightening and cutting machine, rebar bending machine, Scrap rebar straightening machine, Rebar cutting machine, Press baling machine and so on. As an old machines factory, quality with reasonable price are always are developing target. Dingsheng machine can ensure all the machines you bought are brand new with good quality, well tested and packed.
